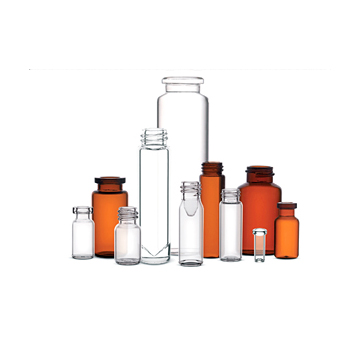

Size ranges from 0.5 to 240 mL. Various shape types are available, including standard, screw neck, straight and flare vials.
- Volume
- : 0.5 to 240 mL
- Body diameter
- : 8 to 53 mm
- Height
- : 22 to 165 mm
NIPRO’s tubular containers made of borosilicate glass tubes conform to the Japanese Pharmacopoeia, which minimizes chemical reactions to the contained drugs and provides excellent heat and break resistance.
Size ranges from 0.5 to 240 mL. Various shape types are available, including standard, screw neck, straight and flare vials.

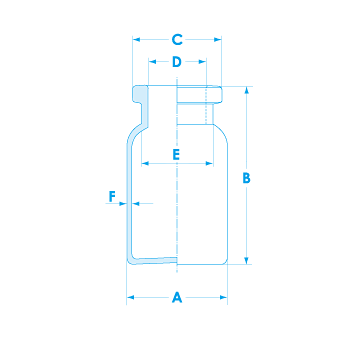

Volume mL | A mm | B mm | C mm | D mm | E mm | F mm | |
---|---|---|---|---|---|---|---|
2 | 16.0±0.2 | 35.0±0.5 | 13.0 | +0.2 -0.3 | 7.0±0.2 | 10.5 | 1.0±0.04 |
4 | 16.0±0.2 | 45.0±0.5 | 13.0 | +0.2 -0.3 | 7.0±0.2 | 10.5 | 1.0±0.04 |
6 | 22.0±0.2 | 40.0±0.5 | 20.0 | +0.2 -0.3 | 12.6±0.2 | 16.5 | 1.0±0.04 |
8 | 22.0±0.2 | 45.0±0.5 | 20.0 | +0.2 -0.3 | 12.6±0.2 | 16.5 | 1.0±0.04 |
10 | 24.0±0.2 | 45.0±0.5 | 20.0 | +0.2 -0.3 | 12.6±0.2 | 16.5 | 1.0±0.04 |
15 | 24.0±0.2 | 60.0±0.5 | 20.0 | +0.2 -0.3 | 12.6±0.2 | 16.5 | 1.0±0.04 |
20 | 30.0±0.3 | 55.0±0.7 | 20.0 | +0.2 -0.3 | 12.6±0.2 | 17.5 | 1.2±0.05 |
25 | 30.0±0.3 | 65.0±0.7 | 20.0 | +0.2 -0.3 | 12.6±0.2 | 17.5 | 1.2±0.05 |
30 | 30.0±0.3 | 75.0±0.7 | 20.0 | +0.2 -0.3 | 12.6±0.2 | 17.5 | 1.2±0.05 |
50 | 40.0±0.4 | 73.0±0.75 | 20.0 | +0.2 -0.3 | 12.6±0.2 | 17.5 | 1.5±0.07 |
Other specifications can be manufactured upon request.

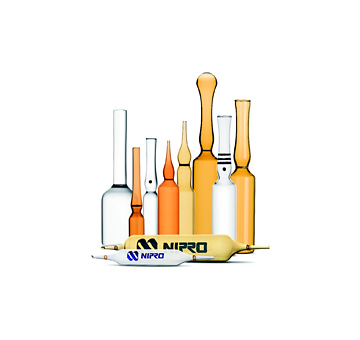

Size ranges from 1 to 100 mL with Type B, C, D, etc. NIPRO ampoules are chosen as the preferred primary container.

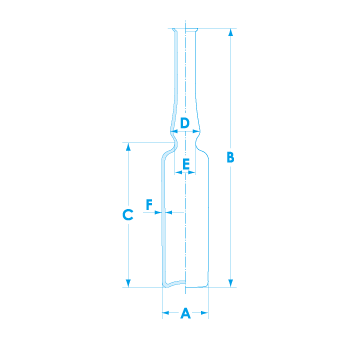

Volume mL | A mm | B mm | C mm | D mm | E mm | F mm |
---|---|---|---|---|---|---|
1 | 10.75±0.15 | 60.0±1.0 | 25.5±0.5 | 8.5±0.5 | 6.5±0.5 | 0.5±0.02 |
2 | 10.75±0.15 | 72.0±1.0 | 37.5±0.5 | 8.5±0.5 | 6.5±0.5 | 0.5±0.02 |
3 | 12.75±0.15 | 75.0±1.0 | 39.5±0.5 | 8.5±0.5 | 6.5±0.5 | 0.5±0.02 |
5 | 14.75±0.15 | 83.0±1.0 | 46.5±0.5 | 9.0±0.5 | 7.0±0.5 | 0.55±0.03 |
10 | 17.75±0.2 | 102.0±1.0 | 62.0±1.0 | 9.5±0.5 | 7.5±0.5 | 0.6±0.03 |
20 | 22.5±0.25 | 113.0±1.0 | 76.0±1.3 | 12.0±1.0 | 8.5±0.5 | 0.7±0.04 |
25 | 22.5±0.25 | 128.0±1.0 | 91.0±1.3 | 12.0±1.0 | 8.5±0.5 | 0.7±0.04 |
30 | 22.5±0.25 | 143.0±1.0 | 106.0±1.3 | 12.0±1.0 | 8.5±0.5 | 0.7±0.04 |
50 | 27.0±0.3 | 182.5±2.5 | 121.0±1.3 | 12.3±1.0 | 10.3±0.9 | 0.62±0.05 |
100 | 36.0±0.5 | 203.0±2.5 | 133.0±1.3 | 15.6±1.5 | 15.0±1.5 | 0.9±0.06 |
Other specifications can be manufactured upon request.

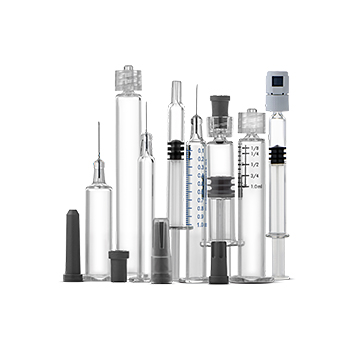

Pre-fillable glass syringes are safe and stable pharmaceutical packaging.
The range of body diameter is from 6.85 to 10.85 mm.
Staked needles, Luer Lock, Luer cone, etc., are available.
Scale mark printing is available on the syringes upon request.

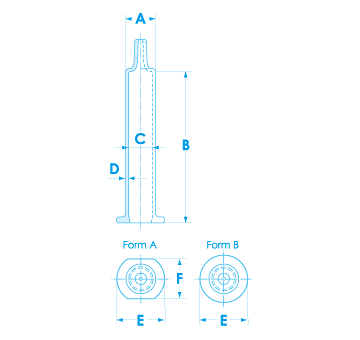

Volume mL | A mm | B mm | C mm | D mm | E mm | F mm | Total height mm |
---|---|---|---|---|---|---|---|
0.5 | 6.85±0.1 | 47.6±0.5 | 4.65±0.1 | 1.1 | 13.40±0.4 | 10.50±0.4 | 57.5±0.5 |
1 long | 8.15±0.1 | 54.0±0.5 | 6.35±0.1 | 0.9 | 13.80±0.4 | 11.00±0.4 | 64.0±0.5 |
1 Standard | 10.85±0.1 | 35.7±0.5 | 8.65±0.2 | 1.1 | 17.75±0.75 | 14.7±0.5 | 46.7±0.5 |
2 | 10.85±0.1 | 49.0±0.5 | 8.65±0.2 | 1.1 | 17.75±0.75 | 14.7±0.5 | 60.0±0.5 |
2.25 | 10.85±0.1 | 54.4±0.5 | 8.65±0.2 | 1.1 | 17.75±0.75 | 14.7±0.5 | 66.6±0.75 |
3 | 10.85±0.1 | 72.2±0.5 | 8.65±0.2 | 1.1 | 17.75±0.75 | 14.7±0.5 | 84.4±1.0 |
Other specifications can be manufactured upon request.

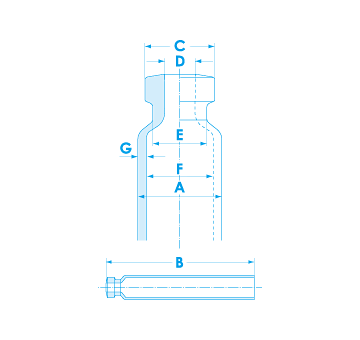

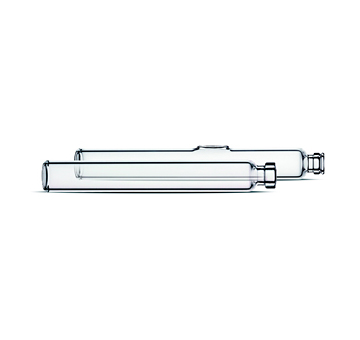

Volume mL | A mm | B mm | C mm | D mm | E mm | F mm | G mm |
---|---|---|---|---|---|---|---|
1 | 8.65±0.15 | 42.0±0.5 | 7.15±0.1 | 3.15±0.15 | 5.5±0.25 | 6.85±0.15 | 0.9 |
1.5 | 8.65±0.15 | 56.0±0.5 | 7.15±0.2 | 3.15±0.15 | 5.5±0.25 | 6.85±0.15 | 0.9 |
1.8 | 8.65±0.15 | 63.0±0.5 | 7.15±0.2 | 3.15±0.15 | 5.5±0.25 | 6.85±0.15 | 0.9 |
2 | 8.65±0.15 | 69.0±0.5 | 7.15±0.2 | 3.15±0.15 | 5.5±0.25 | 6.85±0.15 | 0.9 |
2.2 | 8.65±0.15 | 75.0±0.5 | 7.15±0.2 | 3.15±0.15 | 5.5±0.25 | 6.85±0.15 | 0.9 |
Other specifications can be manufactured upon request.
The products on this English website may not be available outside of Japan.
Requirements may vary from country to country.
Please get in touch with our local representative in more detail.
