Our BusinessMedical Device Business
Interventional Products
Rebirth Pro™ 2 (aspiration catheter)
Product

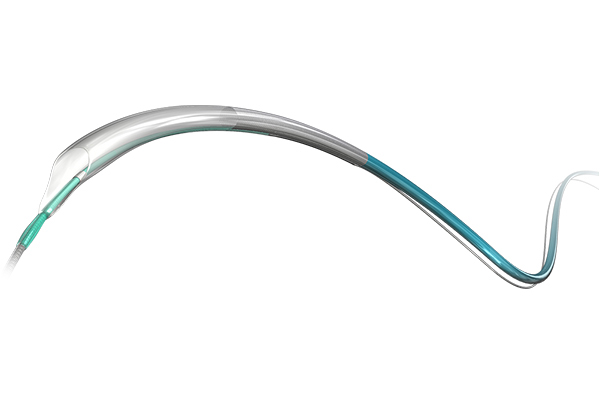

Rebirth Pro™ 2
- Powerful aspiration
- Dynamic aspiration is rapidly achieved by maintaining a large and consistent inner lumen profile (cross sectional area: 6F = 0.97mm², 7F = 1.23mm²).
- Superior deliverability
- Durable hydrophilic coating ensures minimal resistance during insertion into guide catheter and vasculature, providing for greater distal delivery.
- Tracking along guidewire
- The extended 22cm guidewire lumen improves guidewire tracking and deliverability.
- User friendly system
- A two package system allows for the 1st operator to prepare the aspiration catheter while 2nd operator prepares the accessories. Furthermore, the extension tube, 2 way stopcock and syringe is pre-connected, reducing required set up time.
- Thrombus filter
- A large size filter is included with accessories and can be fitted to 500ml beakers found in cath labs.
A smaller cell strainer is also included for further pathological testing. - Double aspiration
- A 3 way stopcock is included to attach two 30ml syringes simultaneously.
Ordering information
| Model No. | Outer Diameter | Inner Diameter | Working Length | Appropriate Guide Catheter (min. inner diameter) |
Appropriate Guidewire (max. outer diameter) |
Guidewire Lumen Length |
|
|---|---|---|---|---|---|---|---|
| Distal (short x long axis) |
Proximal | ||||||
| TM6-111F | 1.35mm x 1.62mm | 1.38mm | 1.11mm | 1,360mm | 6F (1.78mm / 0.070 inch) |
0.36mm (0.014 inch) |
220mm |
| TM7-125F | 1.60mm x 1.90mm | 1.58mm | 1.25mm | 1,360mm | 7F (2.03mm / 0.080 inch) |
0.36mm (0.014 inch) |
220mm |
- Attachments:
- Stylet (pre-inserted), 2 x 30ml syringe, extension tube, flushing device, 2 way stopcock, 3 way stopcock, cell strainer,cell filter, cell filter tray
Instruction For Use 〈Korean version〉 (488KB)
The products on the English website may not be available locally. Detail of intended purpose may also vary by local.
Please contact with our local representative in more detail.
