NSE ALPHA™ (coronary scoring balloon catheter)
Product

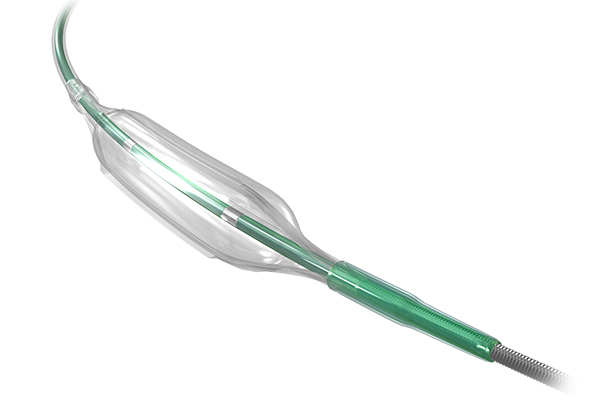

NSE ALPHA™

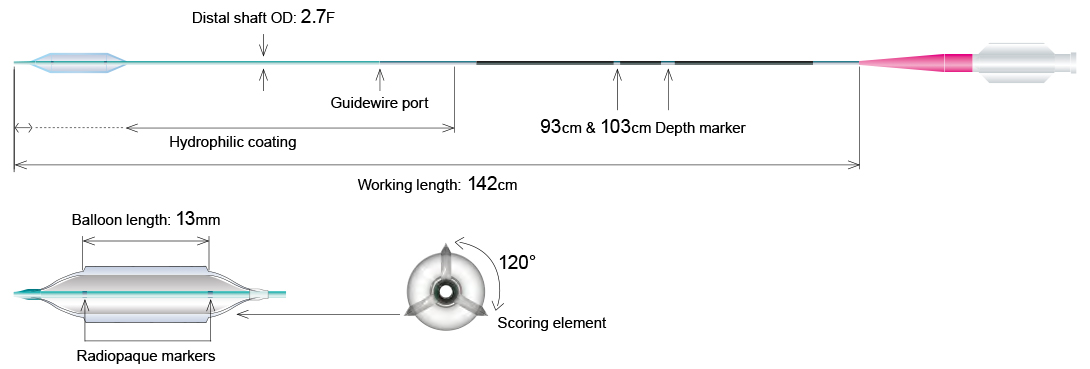

- Catheter design
Compliance chart
| Inflation Pressure | Balloon Diameter (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| atm | kPa | 2.00mm | 2.25mm | 2.50mm | 2.75mm | 3.00mm | 3.25mm | 3.50mm | 4.00mm |
| 4 | 4x10² | 1.93 | 2.16 | 2.38 | 2.65 | 2.89 | 3.13 | 3.37 | 3.86 |
| 5 | 5x10² | 1.97 | 2.20 | 2.44 | 2.70 | 2.95 | 3.19 | 3.45 | 3.94 |
| 6 | 6x10² | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 4.00 |
| 7 | 7x10² | 2.03 | 2.28 | 2.55 | 2.79 | 3.04 | 3.29 | 3.54 | 4.05 |
| 8 | 8x10² | 2.06 | 2.31 | 2.59 | 2.81 | 3.07 | 3.32 | 3.57 | 4.10 |
| 9 | 9x10² | 2.08 | 2.34 | 2.63 | 2.84 | 3.10 | 3.35 | 3.61 | 4.14 |
| 10 | 10x10² | 2.10 | 2.36 | 2.66 | 2.86 | 3.12 | 3.38 | 3.64 | 4.17 |
| 11 | 11x10² | 2.12 | 2.38 | 2.68 | 2.88 | 3.14 | 3.41 | 3.66 | 4.19 |
| 12 | 12x10² | 2.14 | 2.40 | 2.70 | 2.90 | 3.16 | 3.43 | 3.69 | 4.22 |
| 13 | 13x10² | 2.16 | 2.42 | 2.72 | 2.92 | 3.18 | 3.46 | 3.71 | 4.24 |
| 14 | 14x10² | 2.18 | 2.45 | 2.74 | 2.94 | 3.20 | 3.48 | 3.73 | 4.26 |
| 15 | 15x10² | 2.20 | 2.47 | 2.76 | 2.96 | 3.22 | 3.50 | 3.75 | 4.27 |
| 16 | 16x10² | 2.23 | 2.49 | 2.78 | 2.98 | 3.25 | 3.53 | 3.77 | 4.29 |
| 17 | 17x10² | 2.25 | 2.51 | 2.80 | 3.00 | 3.27 | 3.56 | 3.80 | 4.31 |
| 18 | 18x10² | 2.27 | 2.53 | 2.82 | 3.02 | 3.29 | 3.58 | 3.82 | 4.32 |
- NP
- RBP
Ordering information
| Model No. | Balloon Diameter (mm) | Balloon Length (mm) | Distal Shaft OD (F / mm) | Nylon Element |
|---|---|---|---|---|
| NSA20013* | 2.00 | 13 | 2.7 / 0.90 | 3 |
| NSA22513* | 2.25 | 13 | 2.7 / 0.90 | 3 |
| NSA25013 | 2.50 | 13 | 2.7 / 0.90 | 3 |
| NSA27513 | 2.75 | 13 | 2.7 / 0.90 | 3 |
| NSA30013 | 3.00 | 13 | 2.7 / 0.90 | 3 |
| NSA32513 | 3.25 | 13 | 2.7 / 0.90 | 3 |
| NSA35013 | 3.50 | 13 | 2.7 / 0.90 | 3 |
| NSA40013* | 4.00 | 13 | 2.7 / 0.90 | 3 |
*Manufacturing upon receipt of Purchase Order
The products on the English website may not be available locally. Detail of intended purpose may also vary by local.
Please contact with our local representative in more detail.
