Our BusinessMedical Device Business
Interventional Products
Makoto™ Imaging System / Dualpro™ IVUS+NIRS Imaging Catheter
Product
- Features

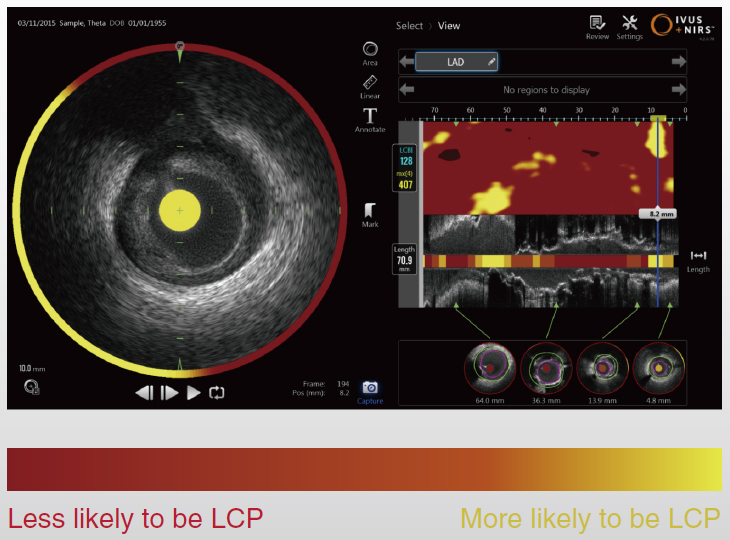

- Makoto™ is an intravascular imaging system.
By combining the conventional IVUS imaging technology with NIRS (Near InfraRed Spectroscopy), Makoto™ is able to detect the presense of LCP (Lipid Core Plaque). - Makoto™ is a product of Infraredx, Inc., a susidiary of NIPRO Corporation.
Please visit http://www.infraredx.com/ for further information
Product

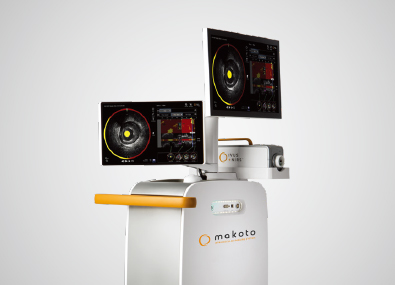

Makoto™ Imaging System
| Monitor | Physician monitor : 21.5" Full HD Technician Monitor : 15.6" Full HD |
|---|---|
| Size | 61x150x71cm |
| Weight | 92kg |
| Available imaging pullback speeds | Live (0.0, 2.0, 10.0mm/s) Automated Pullback (0.5, 1.0, 2.0) |
| Ultrasonic scanning method | Rotational hub |
| Hard drive capacity | 500GB (approximately 1,000 scans) |
| Save formats | DICOM, AVI, PDF, TVC native format |

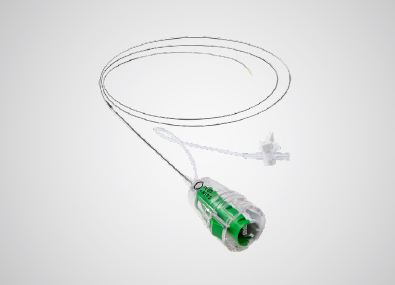

Dualpro™ IVUS+NIRS Imaging Catheter
| Entry profile | 2.4F (0.80mm) |
|---|---|
| Crossing profile | 3.2F (1.09mm) |
| Proximal shaft OD | 3.6F (1.20mm) |
| IVUS frequency | 35-65MHz |
| Working length | 160cm |
| Compatible Guide Catheter (min. inner diameter) |
1.70mm (0.067in) |
| Compatible Guidewire (max. outer diameter) |
0.36mm (0.014in) |
Ordering information
| Model No. | Description |
|---|---|
| TVC-MC10 | Makoto™ Intravascular Imaging system |
| TVC-C195-42 | Dualpro™ IVUS+NIRS Catheter |
The products on the English website may not be available locally. Detail of intended purpose may also vary by local.
Please contact with our local representative in more detail.
