Our BusinessMedical Device Business
Interventional Products
Atherocut™ (directional coronary atherectomy)
Product
Atherocut™

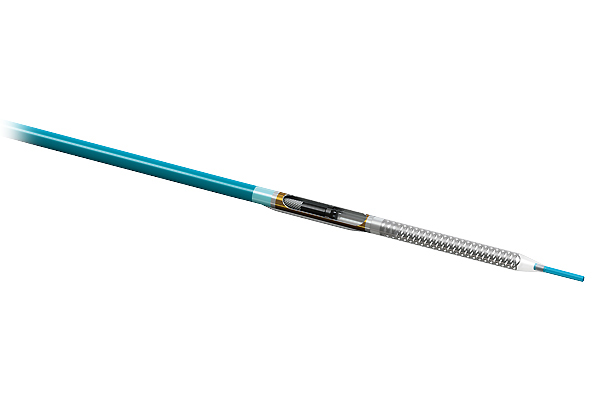

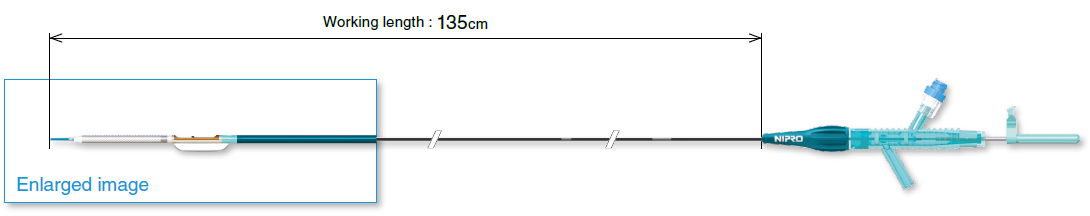

- Catheter design
| Model No. | Size | Recommended Vessel Diameter |
Compatible Guiding Catheter |
Compatible Guidewire |
|---|---|---|---|---|
| NDCA-S9 | S | 3.0-3.4mm | 7F (inner diameter ≧ 2.0mm) |
0.014inch (0.36mm) |
| NDCA-M9 | M | 3.5-3.9mm | ||
| NDCA-L9 | L | 4.0-4.4mm |
MDU (Motor Drive Unit)
| Model No. |
|---|
| NDCA-MDU |

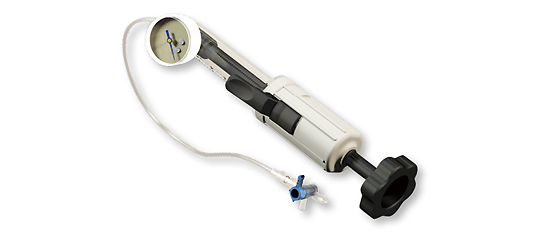

Inflation device
| Model No. |
|---|
| NDCA-Indefrator |

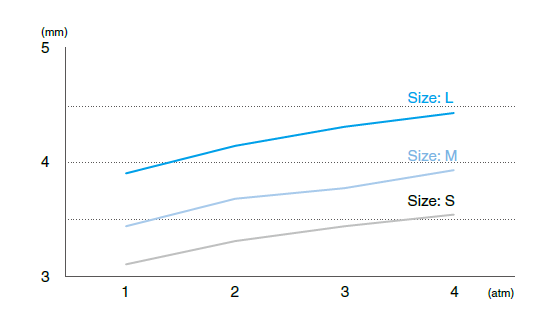

Compliance chart
| Inflation Pressure (atm) |
Size: S (for vessel diameter 3.0-3.4mm) |
Size: M (for vessel diameter 3.5-3.9mm) |
Size: L (for vessel diameter 4.0-4.4mm) |
|---|---|---|---|
| 1 | 3.09 | 3.45 | 3.95 |
| 2 | 3.31 | 3.71 | 4.21 |
| 3 | 3.45 | 3.86 | 4.39 |
| 4 | 3.56 | 3.98 | 4.52 |
The products on the English website may not be available locally. Detail of intended purpose may also vary by local.
Please contact with our local representative in more detail.
