Aperta NSE™ (coronary scoring balloon catheter)
Product
Aperta NSE™

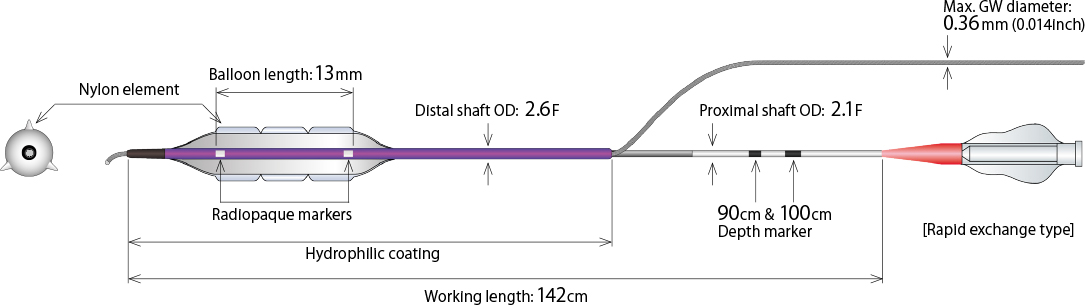

- Catheter design
Compliance chart
| Inflation Pressure | Balloon Diameter (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| atm | kPa | 2.00mm | 2.25mm | 2.50mm | 2.75mm | 3.00mm | 3.25mm | 3.50mm | 4.00mm |
| 4 | 4x10² | 1.78 | 2.02 | 2.27 | 2.45 | 2.70 | 2.95 | 3.18 | 3.50 |
| 5 | 5x10² | 1.81 | 2.05 | 2.30 | 2.50 | 2.73 | 2.98 | 3.23 | 3.55 |
| 6 | 6x10² | 1.84 | 2.08 | 2.33 | 2.55 | 2.76 | 3.01 | 3.26 | 3.60 |
| 7 | 7x10² | 1.86 | 2.11 | 2.36 | 2.59 | 2.79 | 3.04 | 3.29 | 3.65 |
| 8 | 8x10² | 1.88 | 2.13 | 2.38 | 2.63 | 2.82 | 3.07 | 3.32 | 3.70 |
| 9 | 9x10² | 1.90 | 2.15 | 2.40 | 2.65 | 2.85 | 3.10 | 3.35 | 3.75 |
| 10 | 10x10² | 1.92 | 2.17 | 2.42 | 2.67 | 2.88 | 3.13 | 3.38 | 3.80 |
| 11 | 11x10² | 1.94 | 2.19 | 2.44 | 2.69 | 2.91 | 3.16 | 3.41 | 3.85 |
| 12 | 12x10² | 1.96 | 2.21 | 2.46 | 2.71 | 2.94 | 3.19 | 3.44 | 3.90 |
| 13 | 13x10² | 1.98 | 2.23 | 2.48 | 2.73 | 2.97 | 3.22 | 3.47 | 3.95 |
| 14 | 14x10² | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 4.00 |
| 15 | 15x10² | 2.02 | 2.27 | 2.52 | 2.77 | 3.02 | 3.27 | 3.52 | 4.02 |
| 16 | 16x10² | 2.04 | 2.29 | 2.54 | 2.79 | 3.04 | 3.29 | 3.54 | 4.04 |
| 17 | 17x10² | 2.06 | 2.31 | 2.56 | 2.81 | 3.06 | 3.31 | 3.56 | 4.06 |
| 18 | 18x10² | 2.08 | 2.33 | 2.58 | 2.83 | 3.08 | 3.33 | 3.58 | 4.08 |
| 19 | 19x10² | 2.09 | 2.35 | 2.60 | 2.85 | 3.10 | 3.35 | 3.60 | 4.10 |
| 20 | 20x10² | 2.10 | 2.36 | 2.62 | 2.87 | 3.12 | 3.37 | 3.62 | 4.12 |
| 21 | 21x10² | 2.11 | 2.37 | 2.64 | 2.89 | 3.14 | 3.39 | 3.64 | 4.14 |
| 22 | 22x10² | 2.12 | 2.38 | 2.66 | 2.91 | 3.16 | 3.41 | 3.66 | 4.16 |
| 23 | 23x10² | 2.13 | 2.39 | 2.68 | 2.93 | 3.18 | 3.43 | 3.68 | 4.18 |
| 24 | 24x10² | 2.14 | 2.40 | 2.70 | 2.95 | 3.20 | 3.45 | 3.70 | 4.20 |
| 25 | 25x10² | 2.15 | 2.41 | 2.72 | 2.97 | 3.22 | 3.47 | 3.72 | 4.22 |
| 26 | 26x10² | 2.16 | 2.42 | 2.74 | 2.99 | 3.24 | 3.49 | 3.74 | 4.24 |
| 27 | 27x10² | 2.17 | 2.43 | 2.76 | 3.01 | 3.26 | 3.51 | 3.76 | 4.26 |
- NP
- RBP
Ordering information
| Model No. | Balloon Diameter (mm) | Balloon Length (mm) | Proximal shaft OD (F / mm) | Distal Shaft OD (F / mm) | Nylon Element |
|---|---|---|---|---|---|
| APN20013 | 2.00 | 13 | 2.1 / 0.68 | 2.6 / 0.86 | 3 |
| APN22513 | 2.25 | ||||
| APN25013 | 2.50 | ||||
| APN27513 | 2.75 | ||||
| APN30013 | 3.00 | ||||
| APN32513 | 3.25 | ||||
| APN35013 | 3.50 | ||||
| APN40013 | 4.00 |
The products on the English website may not be available locally. Detail of intended purpose may also vary by local.
Please contact with our local representative in more detail.
