Powered™ 3 NC (non-compliant balloon catheter)
Product

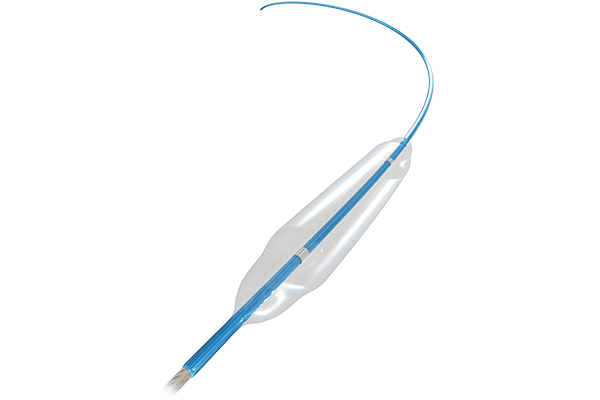

Powered™ 3 NC

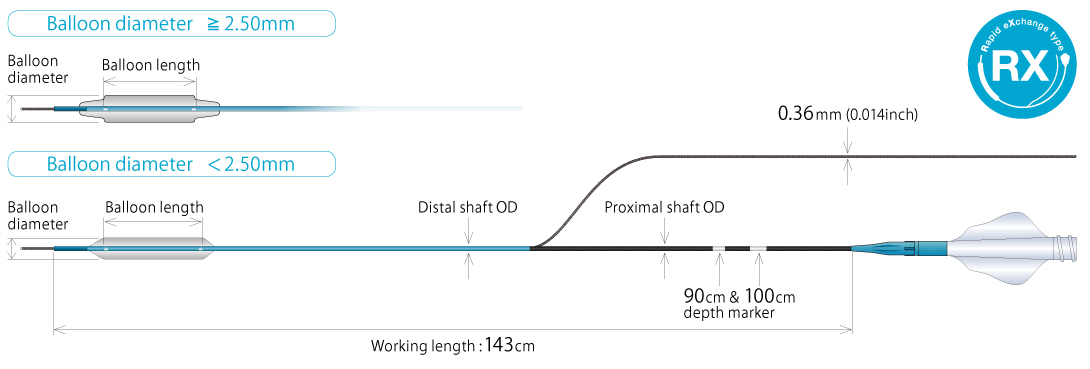

- Catheter design
Compliance chart
| Inflation Pressure | Balloon Diameter (mm) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| atm | kPa | 1.50mm | 2.00mm | 2.25mm | 2.50mm | 2.75mm | 3.00mm | 3.25mm | 3.50mm | 3.75mm | 4.00mm | 4.50mm | 5.00mm |
| 6 | 6x10² | 1.41 | 1.87 | 2.08 | 2.31 | 2.54 | 2.76 | 2.99 | 3.21 | 3.40 | 3.66 | 4.04 | 4.57 |
| 7 | 7x10² | 1.43 | 1.89 | 2.12 | 2.34 | 2.58 | 2.81 | 3.04 | 3.27 | 3.47 | 3.73 | 4.14 | 4.66 |
| 8 | 8x10² | 1.44 | 1.91 | 2.15 | 2.38 | 2.63 | 2.86 | 3.09 | 3.33 | 3.54 | 3.79 | 4.23 | 4.74 |
| 9 | 9x10² | 1.46 | 1.94 | 2.18 | 2.41 | 2.66 | 2.91 | 3.14 | 3.38 | 3.60 | 3.85 | 4.31 | 4.82 |
| 10 | 10x10² | 1.47 | 1.95 | 2.21 | 2.45 | 2.69 | 2.94 | 3.18 | 3.43 | 3.66 | 3.90 | 4.39 | 4.89 |
| 11 | 11x10² | 1.48 | 1.98 | 2.23 | 2.47 | 2.73 | 2.98 | 3.22 | 3.47 | 3.71 | 3.96 | 4.45 | 4.96 |
| 12 | 12x10² | 1.50 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | 4.50 | 5.00 |
| 13 | 13x10² | 1.51 | 2.02 | 2.27 | 2.53 | 2.78 | 3.02 | 3.28 | 3.52 | 3.79 | 4.04 | 4.54 | 5.04 |
| 14 | 14x10² | 1.53 | 2.03 | 2.28 | 2.55 | 2.80 | 3.04 | 3.30 | 3.55 | 3.82 | 4.07 | 4.58 | 5.08 |
| 15 | 15x10² | 1.54 | 2.04 | 2.30 | 2.57 | 2.82 | 3.07 | 3.32 | 3.57 | 3.84 | 4.10 | 4.61 | 5.10 |
| 16 | 16x10² | 1.55 | 2.05 | 2.32 | 2.60 | 2.83 | 3.09 | 3.34 | 3.59 | 3.87 | 4.12 | 4.64 | 5.14 |
| 17 | 17x10² | 1.56 | 2.07 | 2.33 | 2.61 | 2.85 | 3.10 | 3.35 | 3.60 | 3.89 | 4.15 | 4.67 | 5.17 |
| 18 | 18x10² | 1.57 | 2.08 | 2.35 | 2.63 | 2.86 | 3.12 | 3.37 | 3.63 | 3.91 | 4.17 | 4.69 | 5.20 |
| 19 | 19x10² | 1.58 | 2.09 | 2.36 | 2.64 | 2.87 | 3.14 | 3.38 | 3.64 | 3.93 | 4.19 | 4.72 | 5.22 |
| 20 | 20x10² | 1.59 | 2.10 | 2.38 | 2.65 | 2.88 | 3.16 | 3.40 | 3.66 | 3.96 | 4.21 | 4.75 | 5.26 |
| 21 | 21x10² | 1.60 | 2.11 | 2.39 | 2.66 | 2.90 | 3.17 | 3.41 | 3.68 | 3.98 | 4.23 | 4.78 | 5.28 |
| 22 | 22x10² | 1.61 | 2.11 | 2.40 | 2.67 | 2.91 | 3.19 | 3.43 | 3.69 | 4.01 | 4.25 | 4.81 | 5.31 |
| 23 | 23x10² | 1.61 | 2.12 | 2.41 | 2.68 | 2.93 | 3.21 | 3.45 | 3.71 | 4.03 | 4.27 | - | - |
| 24 | 24x10² | 1.62 | 2.13 | 2.43 | 2.69 | 2.94 | 3.23 | 3.46 | 3.73 | 4.06 | 4.29 | - | - |
| 25 | 25x10² | 1.62 | 2.14 | 2.44 | 2.70 | 2.96 | 3.25 | 3.48 | 3.75 | 4.08 | 4.32 | - | - |
- NP
- RBP
Ordering information
| Balloon Diameter (mm) |
Balloon Length (mm) | Proximal Shaft OD (F/mm) |
Distal Shaft OD (F/mm) |
||||
|---|---|---|---|---|---|---|---|
| 8mm | 10mm | 12mm | 15mm | 20mm | |||
| 1.50mm | - | P3N15010* | - | - | - | 2.1 / 0.69 | 2.45/0.81 |
| 2.00mm | - | P3N20010* | - | P3N20015* | - | ||
| 2.25mm | - | P3N22510* | - | P3N22515* | - | ||
| 2.50mm | P3N25008 | P3N25010 | P3N25012 | P3N25015 | P3N25020 | ||
| 2.75mm | P3N27508 | P3N27510 | P3N27512 | P3N27515 | P3N27520 | 2.5/0.83 | |
| 3.00mm | P3N30008 | P3N30010 | P3N30012 | P3N30015 | P3N30020 | ||
| 3.25mm | P3N32508 | P3N32510 | P3N32512 | P3N32515 | P3N32520 | ||
| 3.50mm | P3N35008 | P3N35010 | P3N35012 | P3N35015 | P3N35020 | ||
| 3.75mm | P3N37508* | P3N37510* | P3N37512* | P3N37515* | P3N37520* | 2.6/0.86 | |
| 4.00mm | P3N40008 | P3N40010 | P3N40012 | P3N40015 | P3N40020 | ||
| 4.50mm | P3N45008* | - | - | - | - | ||
| 5.00mm | P3N50008* | - | - | - | - | ||
*Manufacturing upon receipt of Purchase Order
Instruction For Use 〈Korean version〉 (434KB)
The products on the English website may not be available locally. Detail of intended purpose may also vary by local.
Please contact with our local representative in more detail.
