FINESTREAM™ S Plus (PTA balloon dilatation catheter)
Product

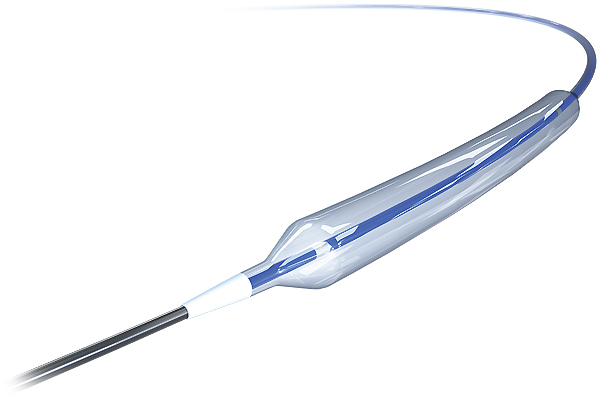

FINESTREAM™ S Plus
- Features
- Achieving a high level of both crossability and compliance in order to facilitate shunt treatment
- RBP for 5.0mm @ 22atm, and 6.0mm @ 20atm.
- Compatible with 5F sheath in order to easily achieve hemostasis
- 4.0-7.0mm diameters are compatible with a 5F sheath (8.0mm requires 6F).
- Incorporating a radiopaque tip and transparent shaft
- The composite material allows for confirming the tip position and the transparent shaft enables quick confirmation of deflation under fluoroscopy.

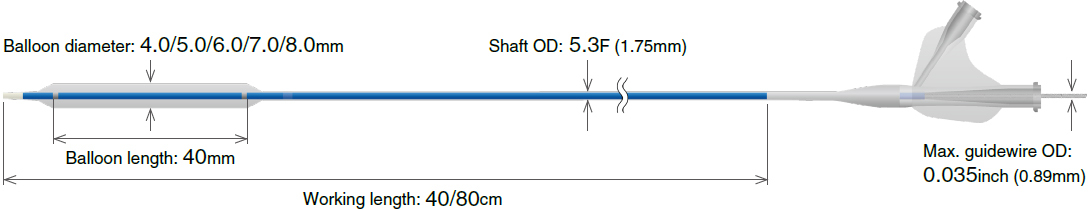

- Catheter design
Compliance chart
| Inflation Pressure | Balloon Diameter (mm) | |||||
|---|---|---|---|---|---|---|
| atm | kPa | 4.00mm | 5.00mm | 6.00mm | 7.00mm | 8.00mm |
| 8 | 8x10² | 3.94 | 4.93 | 5.91 | 6.89 | 7.86 |
| 9 | 9x10² | 3.97 | 4.96 | 5.95 | 6.94 | 7.93 |
| 10 | 10x10² | 4.00 | 5.00 | 6.00 | 7.00 | 8.00 |
| 11 | 11x10² | 4.02 | 5.02 | 6.03 | 7.04 | 8.04 |
| 12 | 12x10² | 4.05 | 5.05 | 6.06 | 7.07 | 8.09 |
| 13 | 13x10² | 4.07 | 5.07 | 6.09 | 7.10 | 8.13 |
| 14 | 14x10² | 4.10 | 5.10 | 6.12 | 7.14 | 8.17 |
| 15 | 15x10² | 4.12 | 5.12 | 6.15 | 7.17 | 8.22 |
| 16 | 16x10² | 4.15 | 5.15 | 6.18 | 7.21 | 8.26 |
| 17 | 17x10² | 4.17 | 5.17 | 6.21 | 7.25 | 8.31 |
| 18 | 18x10² | 4.19 | 5.20 | 6.24 | 7.28 | 8.36 |
| 19 | 19x10² | 4.22 | 5.23 | 6.27 | 7.33 | - |
| 20 | 20x10² | 4.24 | 5.26 | 6.30 | 7.39 | - |
| 21 | 21x10² | 4.27 | 5.29 | 6.34 | - | - |
| 22 | 22x10² | 4.29 | 5.32 | 6.39 | - | - |
| 23 | 23x10² | 4.32 | 5.36 | - | - | - |
| 24 | 24x10² | 4.35 | 5.40 | - | - | - |
| 25 | 25x10² | 4.39 | - | - | - | - |
| 26 | 26x10² | 4.43 | - | - | - | - |
- NP
- RBP
Ordering information
| Model No. | Product name | Balloon | Working length |
Min. compatible sheath |
|
|---|---|---|---|---|---|
| OD | Length | ||||
| FSP-404040 | FINESTREAM SPLUS 4040-40 | 4.0mm | 40mm | 40cm | 5F |
| FSP-504040 | FINESTREAM SPLUS 5040-40 | 5.0mm | |||
| FSP-604040 | FINESTREAM SPLUS 6040-40 | 6.0mm | |||
| FSP-704040 | FINESTREAM SPLUS 7040-40 | 7.0mm | |||
| FSP-804040 | FINESTREAM SPLUS 8040-40 | 8.0mm | 6F | ||
| FSP-404080 | FINESTREAM SPLUS 4040-80 | 4.0mm | 40mm | 80cm | 5F |
| FSP-504080 | FINESTREAM SPLUS 5040-80 | 5.0mm | |||
| FSP-604080 | FINESTREAM SPLUS 6040-80 | 6.0mm | |||
| FSP-704080 | FINESTREAM SPLUS 7040-80 | 7.0mm | |||
| FSP-804080 | FINESTREAM SPLUS 8040-80 | 8.0mm | 6F | ||
The products on the English website may not be available locally. Detail of intended purpose may also vary by local.
Please contact with our local representative in more detail.
